Elembee Alucore A2 Core for ACP
Elembee Alucore A2 Core for ACP
Delivering unmatched fire resistance and structural integrity for modern architecture.
A2 Core for Aluminium Composite Panels.
Embedded Files
Elembee Alucore A2 Core
Elembee Alucore A2 Core
Elembee Alucore A2 Core is a non-combustible mineral-filled core material used in the production of A2-grade aluminium composite panels (ACP).
It meets the strictest fire safety standards (Class A2 per EN13501-1), making it the preferred choice for façade cladding and interior applications in high-rise and sensitive structures.

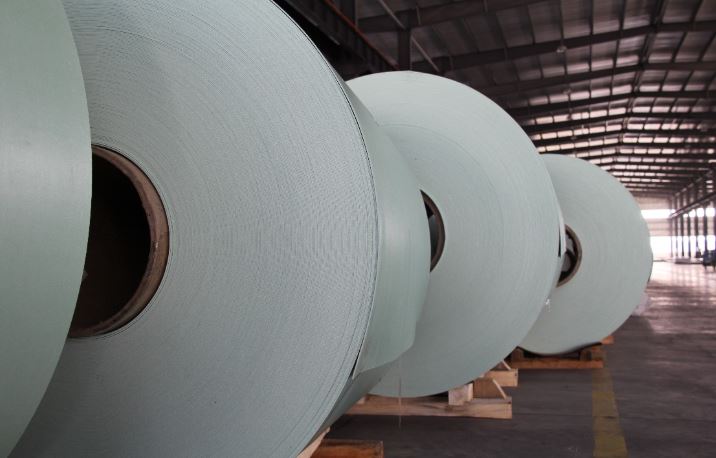

Manufacturing Plant
Manufacturing Plant
Established in 2017, we are proud to be India’s first manufacturer of A2 core material, with an annual production capacity of over 1 million square meters.
≤ 2.7 MJ/KG
≤ 2.7 MJ/KG
Calorific Value
≤ 0.20%
≤ 0.20%
Moisture Content
≤ 6.0%
≤ 6.0%
Water Absorption
≤ 3.00 MJ/KG
≤ 3.00 MJ/KG
Heat Value
≤ 3.00 MJ/KG
≤ 3.00 MJ/KG
Heat Value
As per customer requirement
As per customer requirement
Density
Bendable without cracks
Bendable without cracks
Flexibility
A2, s1, d0, t0 (EN13501-1)
A2, s1, d0, t0 (EN13501-1)
Fire Rating
2.0–8.0 mm
2.0–8.0 mm
Thickness
~0.5 mm
~0.5 mm
Thickness Tolerance
900–1600 mm
900–1600 mm
Width
±5.0 mm
±5.0 mm
Width Tolerance
405 mm
405 mm
Inner Paper Roll Diameter
White or custom
White or custom
Color
Non-Toxic
Non-Toxic
Harmless vapor upon burning
Fire Retardant
Fire Retardant
Fire won’t spread to other materials
